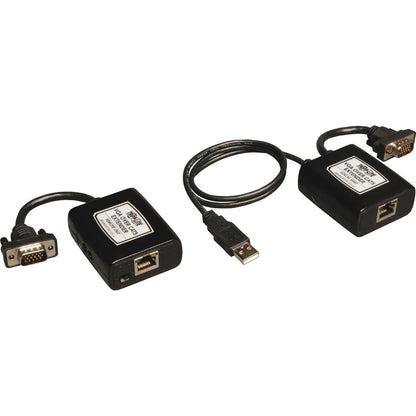

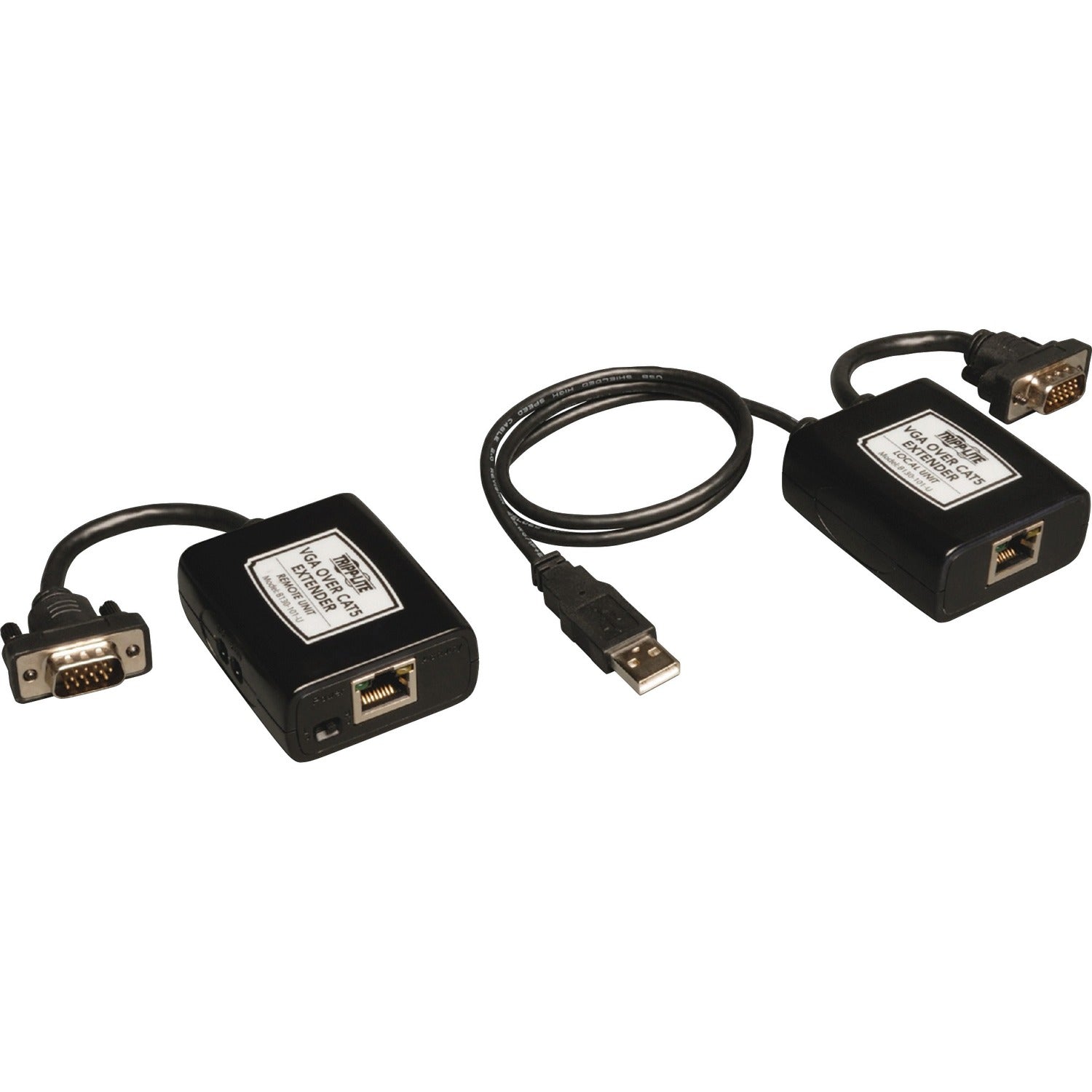

Tripp Lite by Eaton Extender Kit, VGA over Cat5/Cat6, Transmitter/Receiver, Black (TRPB130101U)

Tripp Lite by Eaton Extender Kit, VGA over Cat5/Cat6, Transmitter/Receiver, Black (TRPB130101U)

$143.48
$143.48
/ Each
Sale Sold out

Low stock
Estimated Delivery: Tue 9/23 - Thu 9/25 Delivery in 1-3 business days.

Product Specification

  • Case Pack: Each
  • Color: Black
This VGA over Cat5 extender kit allows you to extend a 1920 x 1440 (60Hz) signal up to 350', or a 1024 x 768 (60Hz) signal up to 500', when using 24Awg, Solid Wire Cat5e/6 cable (sold separately). Extender draws power directly from a USB connection at the computer to eliminate the need for an external AC adapter. Receiver unit includes Gain adjustment for brightness and darkness control, and Equalization adjustment for sharp, clear images. VGA dongles allow for direct attachment to video equipment without requiring a VGA cable. Extender kit is perfect for digital signage applications, classroom or auditorium projectors, and more.
General Information
Manufacturer:Tripp Lite by Eaton
Manufacturer Part Number:B130-101-U
Manufacturer Website Address:https://tripplite.eaton.com/
Brand Name:Tripp Lite by Eaton
Product Model:B130-101-U
Product Name:B130-101-U TAA / GSA Video Extender/Console
Marketing Information:

This VGA over Cat5 extender kit allows you to extend a 1920 x 1440 (60Hz) signal up to 350', or a 1024 x 768 (60Hz) signal up to 500', when using 24Awg, Solid Wire Cat5e/6 cable (sold separately). Extender draws power directly from a USB connection at the computer to eliminate the need for an external AC adapter. Receiver unit includes Gain adjustment for brightness and darkness control, and Equalization adjustment for sharp, clear images. VGA dongles allow for direct attachment to video equipment without requiring a VGA cable. Extender kit is perfect for digital signage applications, classroom or auditorium projectors, and more.


Product Type:Video Extender Transmitter/Receiver
Technical Information
Connectivity Technology:Wired
Number of Input Devices Supported:1
Number of Output Devices Supported:1
Maximum Operating Distance:500 ft
Video
Maximum Video Resolution:1920 x 1440
Interfaces/Ports
Network (RJ-45):Yes
VGA In:Yes
VGA Out:Yes
USB:Yes
Number of Network (RJ-45) Ports:2
Number of USB Ports:1
Number of VGA Inputs:1
Number of VGA Outputs:1
Media & Performance
Media Type Supported:Twisted Pair
Twisted Pair Cable Standard:Category 6
Physical Characteristics
Color Family:Multicolor
Product Color:Black
Miscellaneous
Package Contents:
  • VGA Over Cat5 Transmitter
  • VGA Over Cat5 Receiver
  • EQ And GAIN Adjustment Screwdriver

Certifications & Standards:
  • TAA
  • GSA

Country of Origin:Taiwan
TAA Compliant:Yes
Warranty
Limited Warranty:1 Year
Additional Warranty Information:

1 year limited warranty
